Overview
A gateway running Linux, configured with the Sensor-Works ReST API, lets you set up sensors and read, store and export vibration and temperature data. Supplied with supporting files and documentation.High performance
Outstanding measurement capability for verifying setups and sensor measurements.
Development starter
Configure and read data from sensors before writing custom code. Verify, test and control sensors during code development.
Rugged
Suitable for harsh industrial conditions; the sensor is corrosion resistant. Drop test 1.8 m (6 ft), water and dust resistant (IP65).
Wireless operation
Sensors developed with low-power radio and power management, ensuring long battery life.
What’s included
Simple development start-up
Verify setups and sensor measurements.1
Set up the sensor configuration via the API
Apply operating mode, sample rate and trace length.
2
Fix sensors to your machine or test rig
Use a magnet, or screw to a mount.
3
Wake the sensor using the "ON Key" magnet
Provided in the kit.
4
Read, view and export sensor data
Vibration and temperature, via the built-in browser interface.
5
Power down sensors between development stages
Preserve battery life while not measuring.

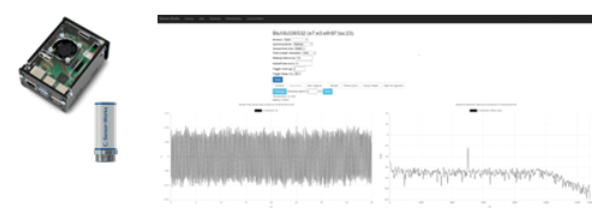

ReST API web interface
A built-in interface accessed from a browser. Sensors appear in the Devices list and can be added to the whitelist.Gateway
Raspberry Pi 5, pre-loaded with the Sensor-Works ReST API application.Sensor
BluVib-M-A — MEMS triaxial vibration & temperature sensor, aluminium base. For the full sensor specification, see the BluVib-M3 datasheet.Downloads
BluVib Lab Kit datasheet (PDF)
Full printable specification · Issue R, June 2026
Sensor-Works Ltd. · Alba Innovation Centre, Alba Campus, Livingston, West Lothian EH54 7GA · +44 (0)1506 592356 · www.sensor-works.com
